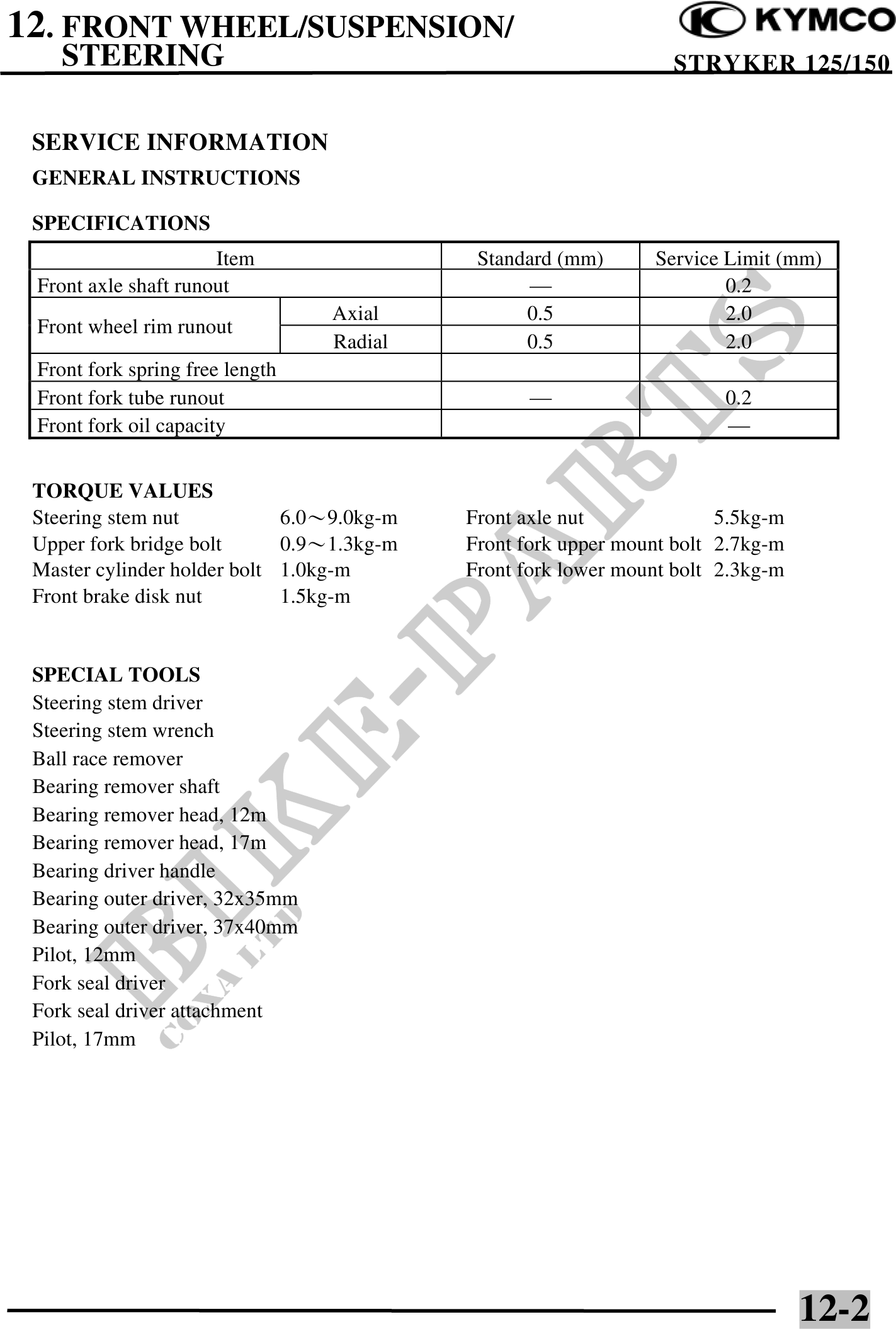

12. FRONT WHEEL/SUSPENSION/
STEERING STRYKER 125/150
SERVICE INFORMATION
GENERAL INSTRUCTIONS
SPECIFICATIONS
Item Standard (mm) Service Limit (mm)
Front axle shaft runout 0.2
Axial 0.5 2.0
Front wheel rim runout
Radial 0.5 2.0
Front fork spring free length
Front fork tube runout 0.2
Front fork oil capacity
TORQUE VALUES
Steering stem nut 6.09.0kg-m Front axle nut 5.5kg-m
Upper fork bridge bolt 0.91.3kg-m Front fork upper mount bolt 2.7kg-m
Master cylinder holder bolt 1.0kg-m Front fork lower mount bolt 2.3kg-m
Front brake disk nut 1.5kg-m
SPECIAL TOOLS
Steering stem driver
Steering stem wrench
Ball race remover
Bearing remover shaft
Bearing remover head, 12m
Bearing remover head, 17m
Bearing driver handle
Bearing outer driver, 32x35mm
Bearing outer driver, 37x40mm
Pilot, 12mm
Fork seal driver
Fork seal driver attachment
Pilot, 17mm
12-2
