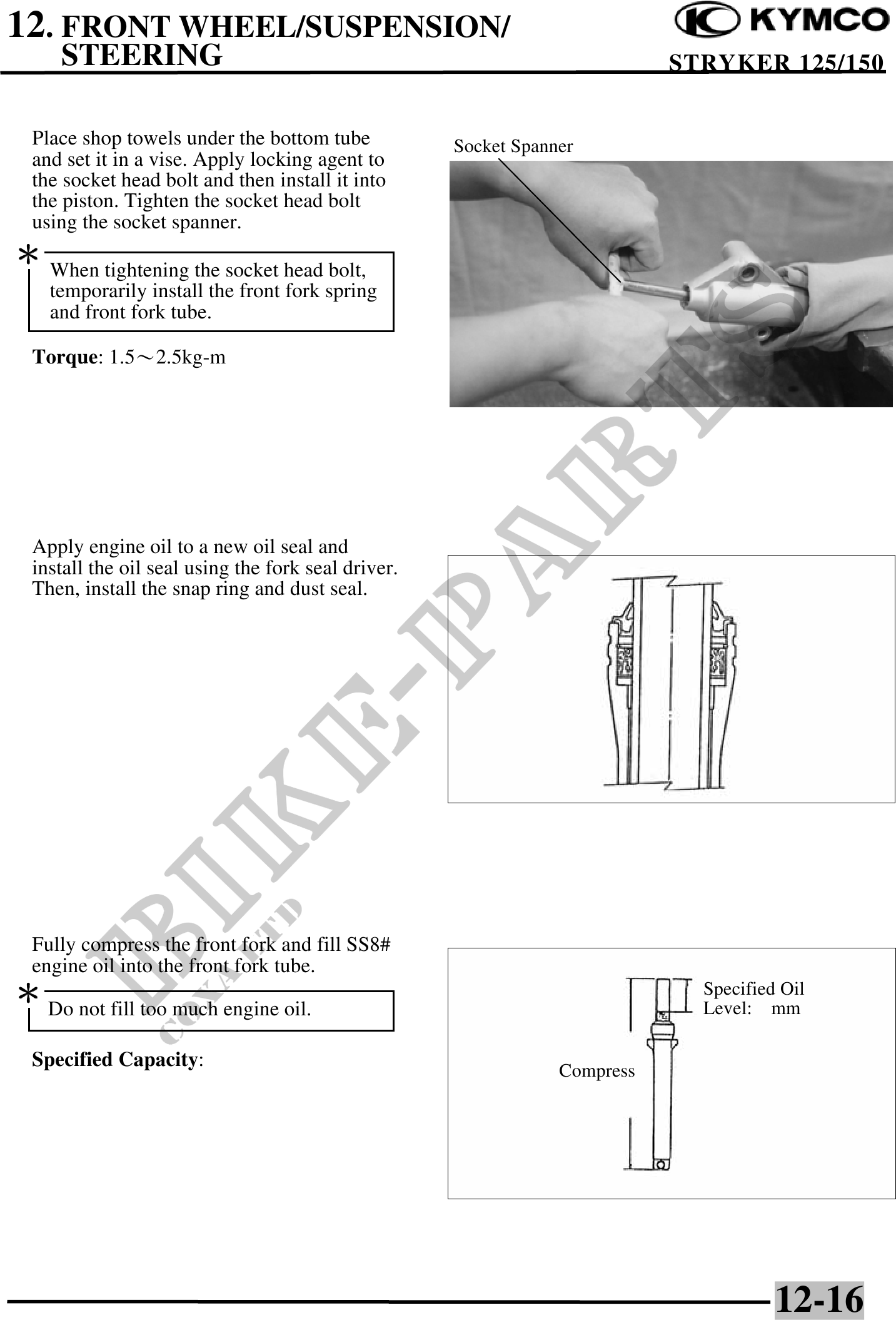

12. FRONT WHEEL/SUSPENSION/
STEERING STRYKER 125/150
Place shop towels under the bottom tube Socket Spanner
and set it in a vise. Apply locking agent to
the socket head bolt and then install it into
the piston. Tighten the socket head bolt
using the socket spanner.
When tightening the socket head bolt,
temporarily install the front fork spring
and front fork tube.
Torque: 1.52.5kg-m
Apply engine oil to a new oil seal and
install the oil seal using the fork seal driver.
Then, install the snap ring and dust seal.
Fully compress the front fork and fill SS8#
engine oil into the front fork tube.
Do not fill too much engine oil. Specified Oil
Level: mm
Specified Capacity:
Compress
12-16
