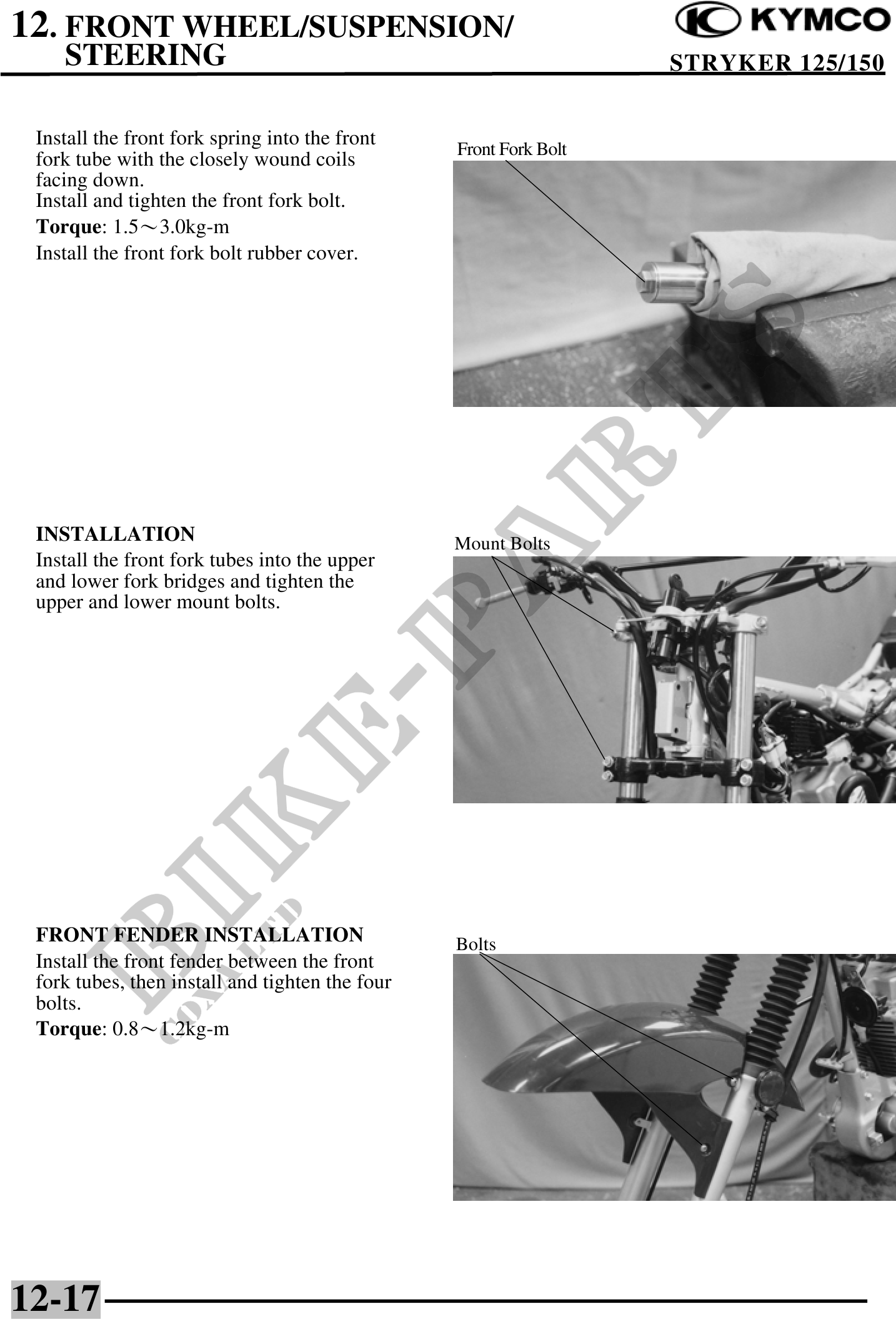

12. FRONT WHEEL/SUSPENSION/
STEERING STRYKER 125/150
Install the front fork spring into the front Front Fork Bolt
fork tube with the closely wound coils
facing down.
Install and tighten the front fork bolt.
Torque: 1.53.0kg-m
Install the front fork bolt rubber cover.
INSTALLATION Mount Bolts
Install the front fork tubes into the upper
and lower fork bridges and tighten the
upper and lower mount bolts.
FRONT FENDER INSTALLATION Bolts
Install the front fender between the front
fork tubes, then install and tighten the four
bolts.
Torque: 0.81.2kg-m
12-17
