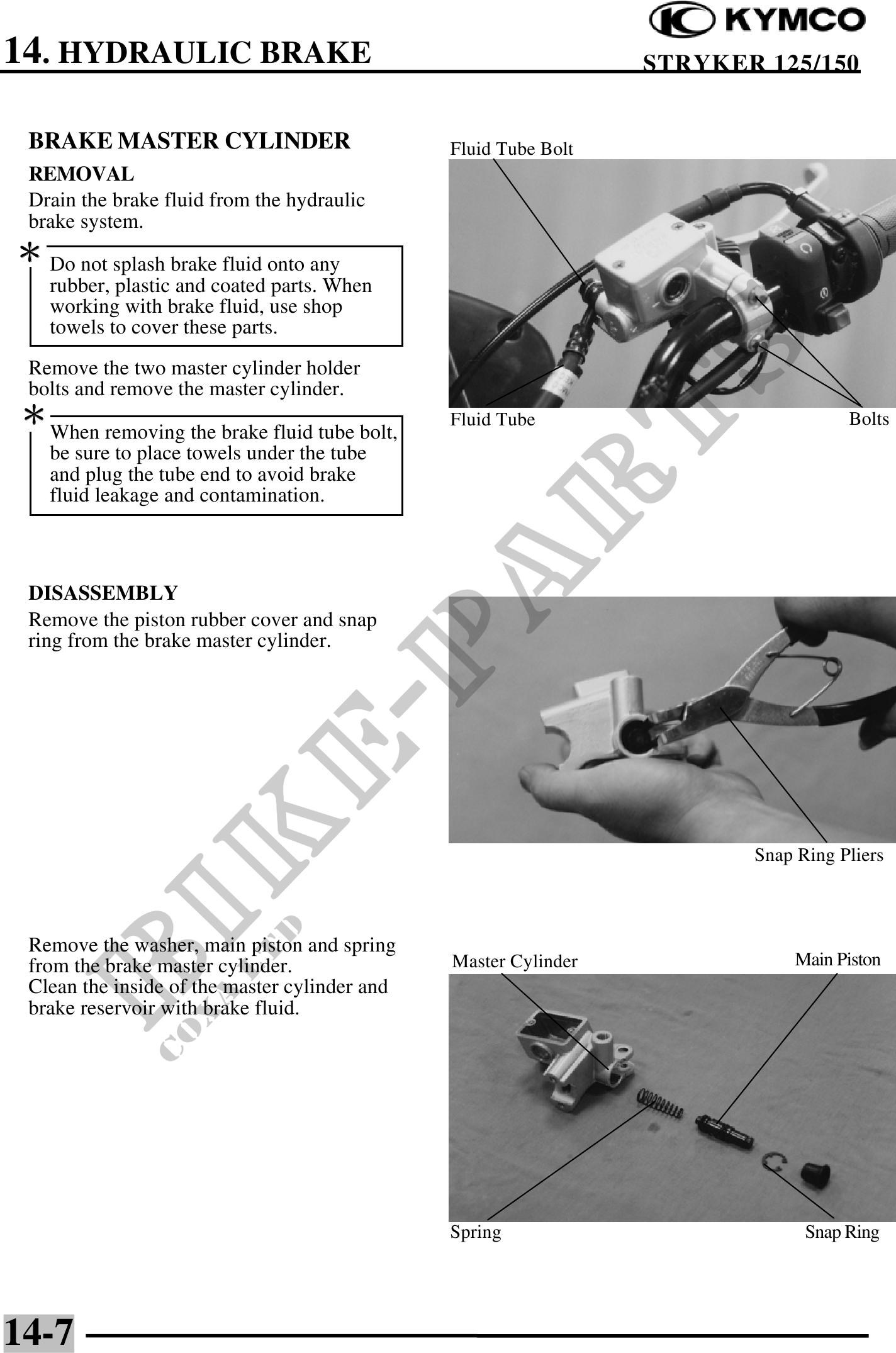

14. HYDRAULIC BRAKE STRYKER 125/150
BRAKE MASTER CYLINDER Fluid Tube Bolt
REMOVAL
Drain the brake fluid from the hydraulic
brake system.
Do not splash brake fluid onto any
rubber, plastic and coated parts. When
working with brake fluid, use shop
towels to cover these parts.
Remove the two master cylinder holder
bolts and remove the master cylinder.
When removing the brake fluid tube bolt, Fluid Tube Bolts
be sure to place towels under the tube
and plug the tube end to avoid brake
fluid leakage and contamination.
DISASSEMBLY
Remove the piston rubber cover and snap
ring from the brake master cylinder.
Snap Ring Pliers
Remove the washer, main piston and spring
from the brake master cylinder. Master Cylinder Main Piston
Clean the inside of the master cylinder and
brake reservoir with brake fluid.
Spring Snap Ring
14-7
