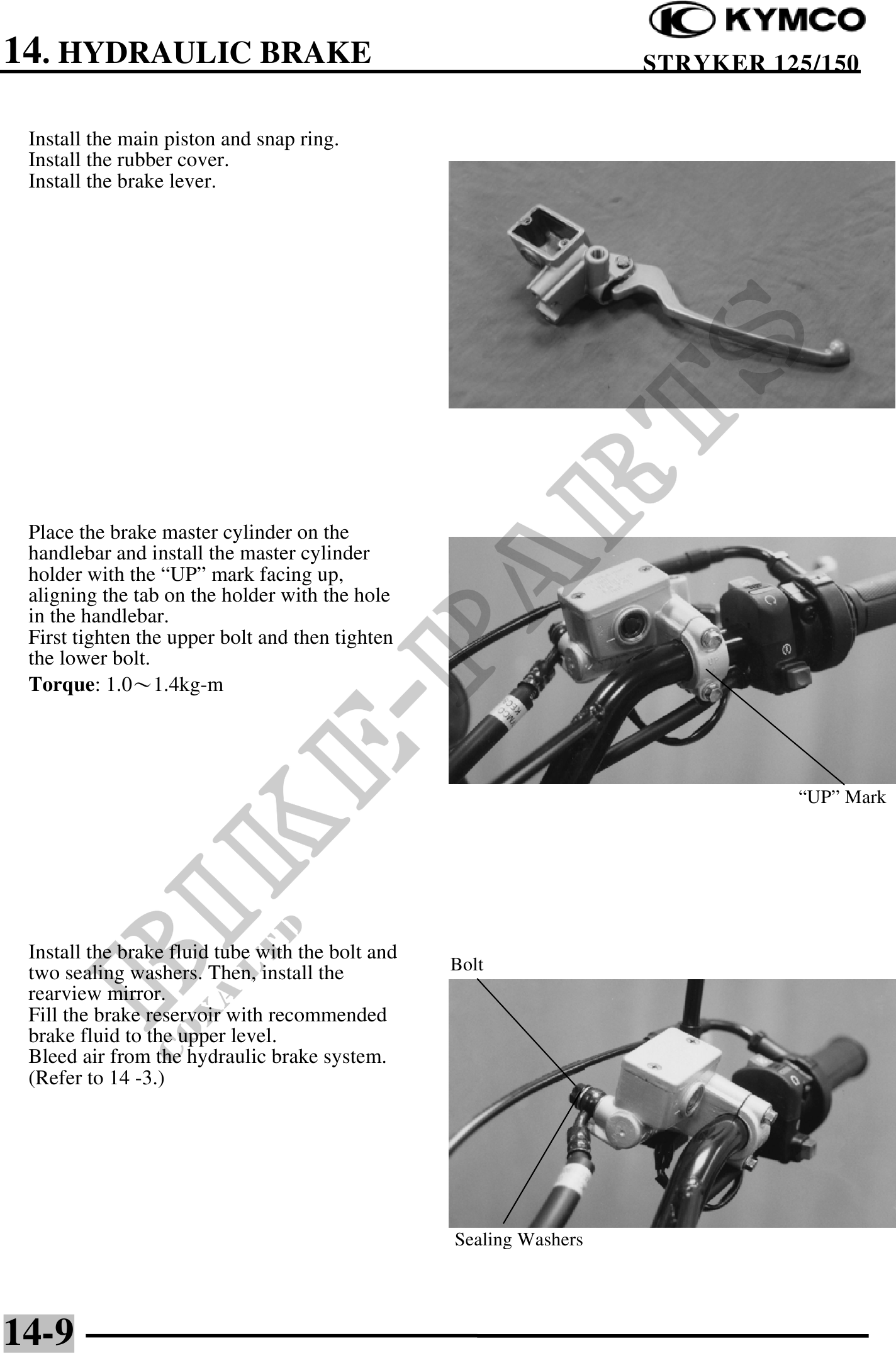

14. HYDRAULIC BRAKE STRYKER 125/150
Install the main piston and snap ring.
Install the rubber cover.
Install the brake lever.
Place the brake master cylinder on the
handlebar and install the master cylinder
holder with the "UP" mark facing up,
aligning the tab on the holder with the hole
in the handlebar.
First tighten the upper bolt and then tighten
the lower bolt.
Torque: 1.01.4kg-m
"UP" Mark
Install the brake fluid tube with the bolt and
two sealing washers. Then, install the Bolt
rearview mirror.
Fill the brake reservoir with recommended
brake fluid to the upper level.
Bleed air from the hydraulic brake system.
(Refer to 14 -3.)
Sealing Washers
14-9
