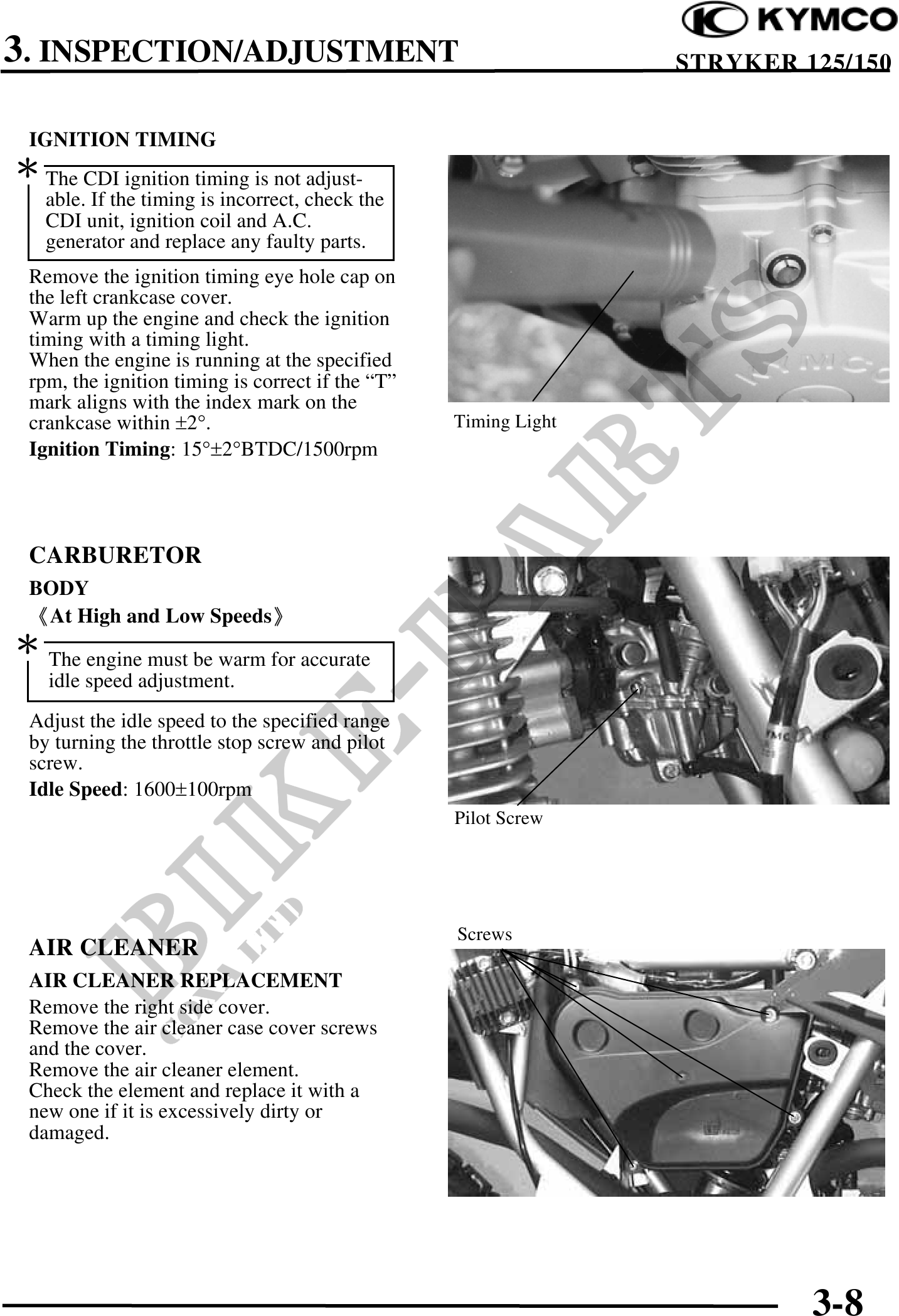

          3. INSPECTION/ADJUSTMENT                                         STRYKER 125/150


 IGNITION TIMING
 The CDI ignition timing is not adjust-
   able. If the timing is incorrect, check the
   CDI unit, ignition coil and A.C.
   generator and replace any faulty parts.
 Remove the ignition timing eye hole cap on
 the left crankcase cover.
 Warm up the engine and check the ignition
 timing with a timing light.
 When the engine is running at the specified
 rpm, the ignition timing is correct if the "T"
 mark aligns with the index mark on the
 crankcase within 2°.                             Timing Light
 Ignition Timing: 15°2°BTDC/1500rpm




 CARBURETOR
 BODY
 At High and Low Speeds
 The engine must be warm for accurate
    idle speed adjustment.
 Adjust the idle speed to the specified range
 by turning the throttle stop screw and pilot
 screw.
 Idle Speed: 1600100rpm
                                                  Pilot Screw




                                                  Screws
 AIR CLEANER
 AIR CLEANER REPLACEMENT
 Remove the right side cover.
 Remove the air cleaner case cover screws
 and the cover.
 Remove the air cleaner element.
 Check the element and replace it with a
 new one if it is excessively dirty or
 damaged.




                                                                          3-8
