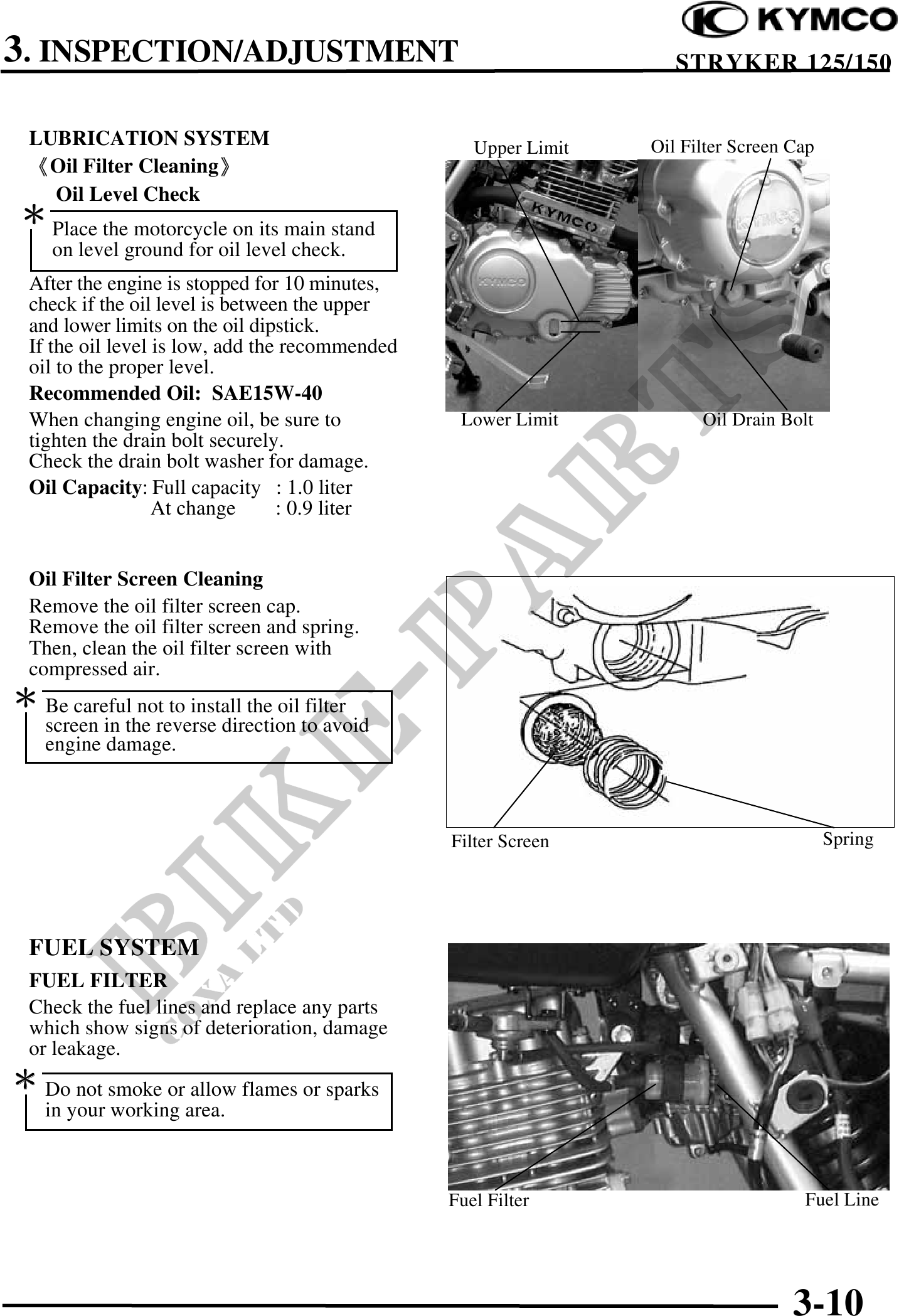

3. INSPECTION/ADJUSTMENT STRYKER 125/150
LUBRICATION SYSTEM Upper Limit Oil Filter Screen Cap
Oil Filter Cleaning
Oil Level Check
Place the motorcycle on its main stand
on level ground for oil level check.
After the engine is stopped for 10 minutes,
check if the oil level is between the upper
and lower limits on the oil dipstick.
If the oil level is low, add the recommended
oil to the proper level.
Recommended Oil: SAE15W-40
When changing engine oil, be sure to Lower Limit Oil Drain Bolt
tighten the drain bolt securely.
Check the drain bolt washer for damage.
Oil Capacity: Full capacity : 1.0 liter
At change : 0.9 liter
Oil Filter Screen Cleaning
Remove the oil filter screen cap.
Remove the oil filter screen and spring.
Then, clean the oil filter screen with
compressed air.
Be careful not to install the oil filter
screen in the reverse direction to avoid
engine damage.
Filter Screen Spring
FUEL SYSTEM
FUEL FILTER
Check the fuel lines and replace any parts
which show signs of deterioration, damage
or leakage.
Do not smoke or allow flames or sparks
in your working area.
Fuel Filter Fuel Line
3-10
