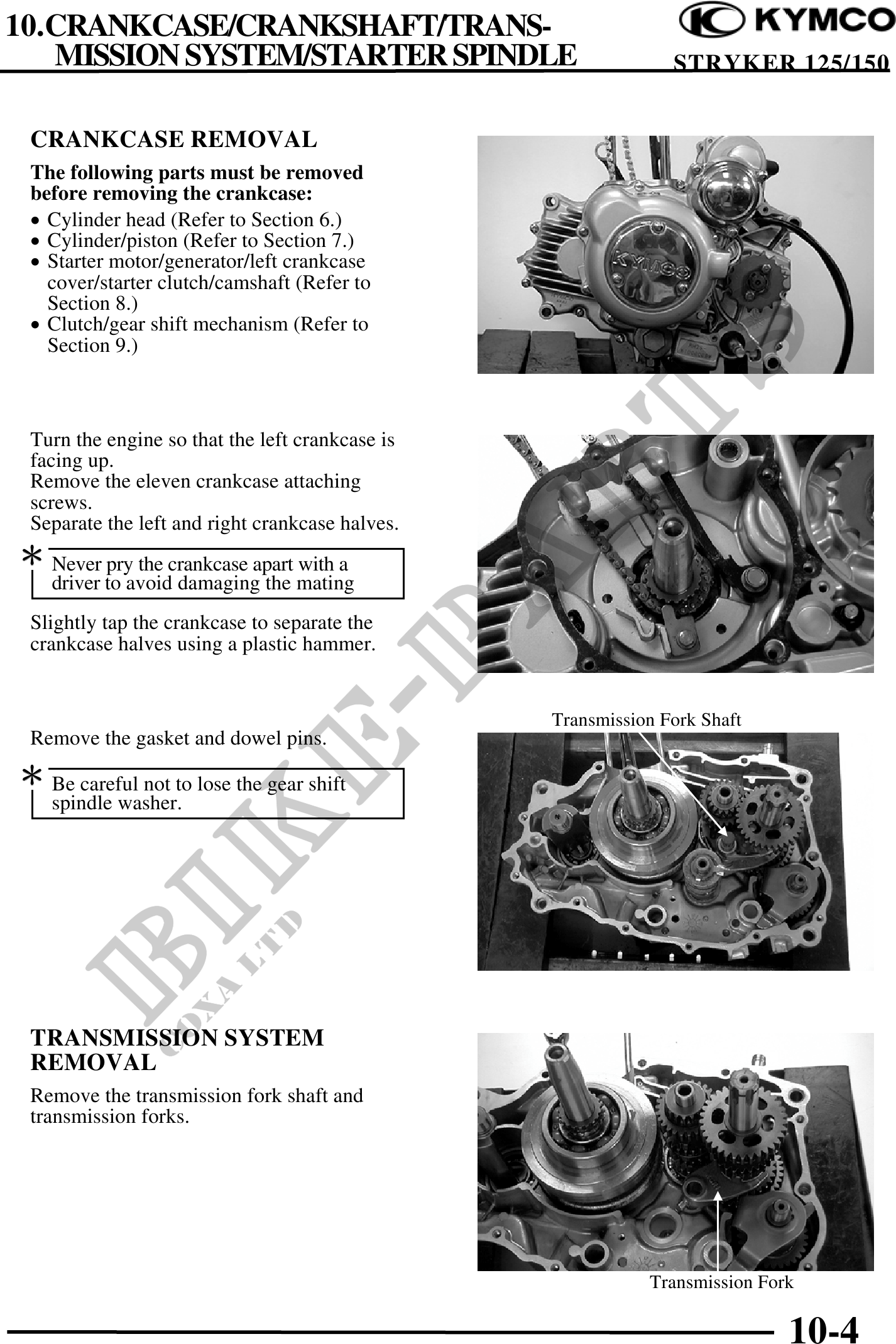

10.CRANKCASE/CRANKSHAFT/TRANS-
MISSION SYSTEM/STARTER SPINDLE STRYKER 125/150
CRANKCASE REMOVAL
The following parts must be removed
before removing the crankcase:
· Cylinder head (Refer to Section 6.)
· Cylinder/piston (Refer to Section 7.)
· Starter motor/generator/left crankcase
cover/starter clutch/camshaft (Refer to
Section 8.)
· Clutch/gear shift mechanism (Refer to
Section 9.)
Turn the engine so that the left crankcase is
facing up.
Remove the eleven crankcase attaching
screws.
Separate the left and right crankcase halves.
Never pry the crankcase apart with a
driver to avoid damaging the mating
Slightly tap the crankcase to separate the
crankcase halves using a plastic hammer.
Transmission Fork Shaft
Remove the gasket and dowel pins.
Be careful not to lose the gear shift
spindle washer.
TRANSMISSION SYSTEM
REMOVAL
Remove the transmission fork shaft and
transmission forks.
Transmission Fork
10-4
