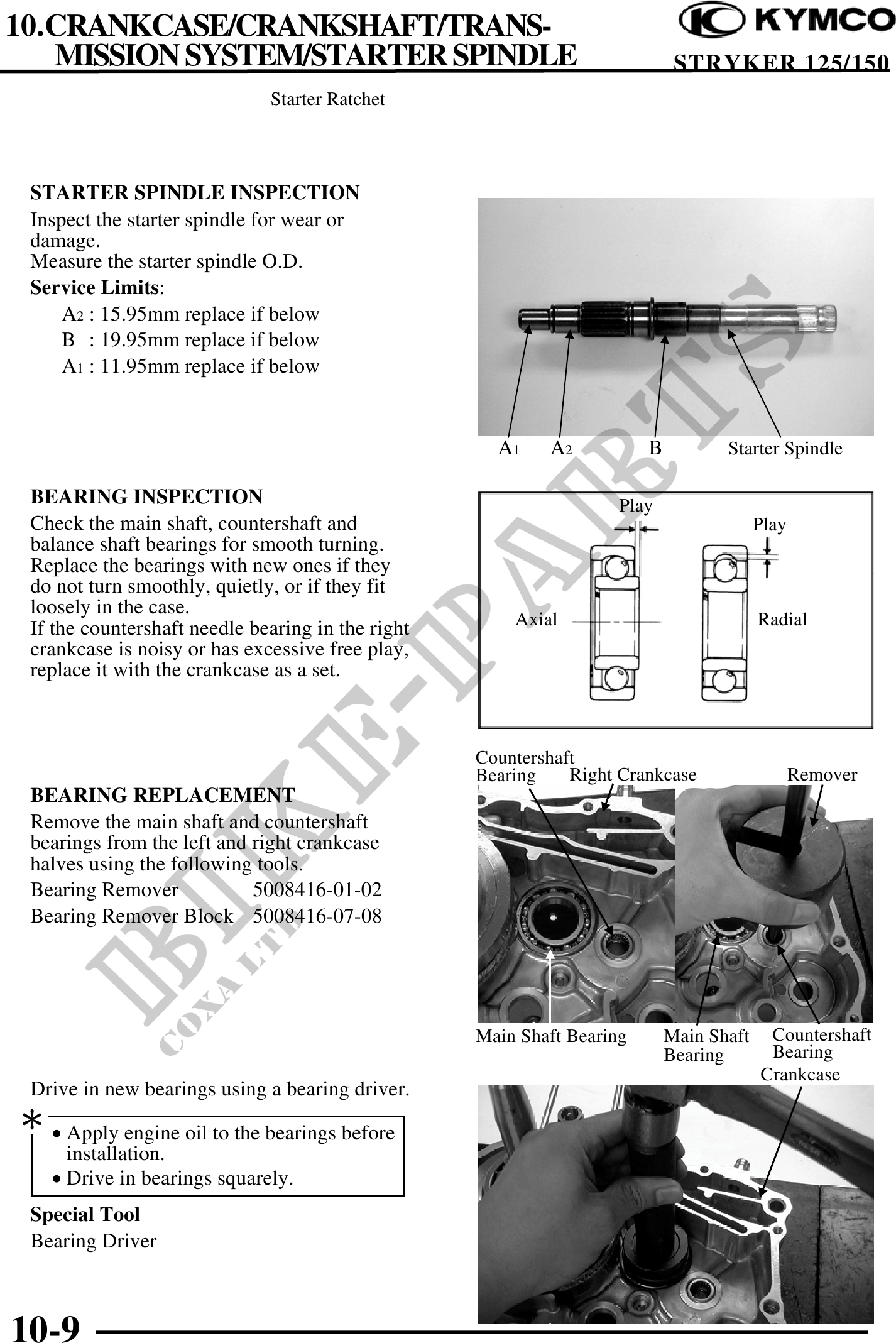

          10.CRANKCASE/CRANKSHAFT/TRANS-
   MISSION SYSTEM/STARTER SPINDLE                                            STRYKER 125/150
                              Starter Ratchet



 STARTER SPINDLE INSPECTION
 Inspect the starter spindle for wear or
 damage.
 Measure the starter spindle O.D.
 Service Limits:
     A2 : 15.95mm replace if below
     B : 19.95mm replace if below
     A1 : 11.95mm replace if below


                                                     A1    A2           B          Starter Spindle

 BEARING INSPECTION                                                 Play
 Check the main shaft, countershaft and                                                  Play
 balance shaft bearings for smooth turning.
 Replace the bearings with new ones if they
 do not turn smoothly, quietly, or if they fit
 loosely in the case.
 If the countershaft needle bearing in the right       Axial                             Radial
 crankcase is noisy or has excessive free play,
 replace it with the crankcase as a set.



                                                   Countershaft
                                                   Bearing    Right Crankcase                   Remover
 BEARING REPLACEMENT
 Remove the main shaft and countershaft
 bearings from the left and right crankcase
 halves using the following tools.
 Bearing Remover            5008416-01-02
 Bearing Remover Block 5008416-07-08




                                                   Main Shaft Bearing       Main Shaft    Countershaft
                                                                            Bearing       Bearing
                                                                                         Crankcase
 Drive in new bearings using a bearing driver.
 · Apply engine oil to the bearings before
     installation.
   · Drive in bearings squarely.
 Special Tool
 Bearing Driver



10-9
