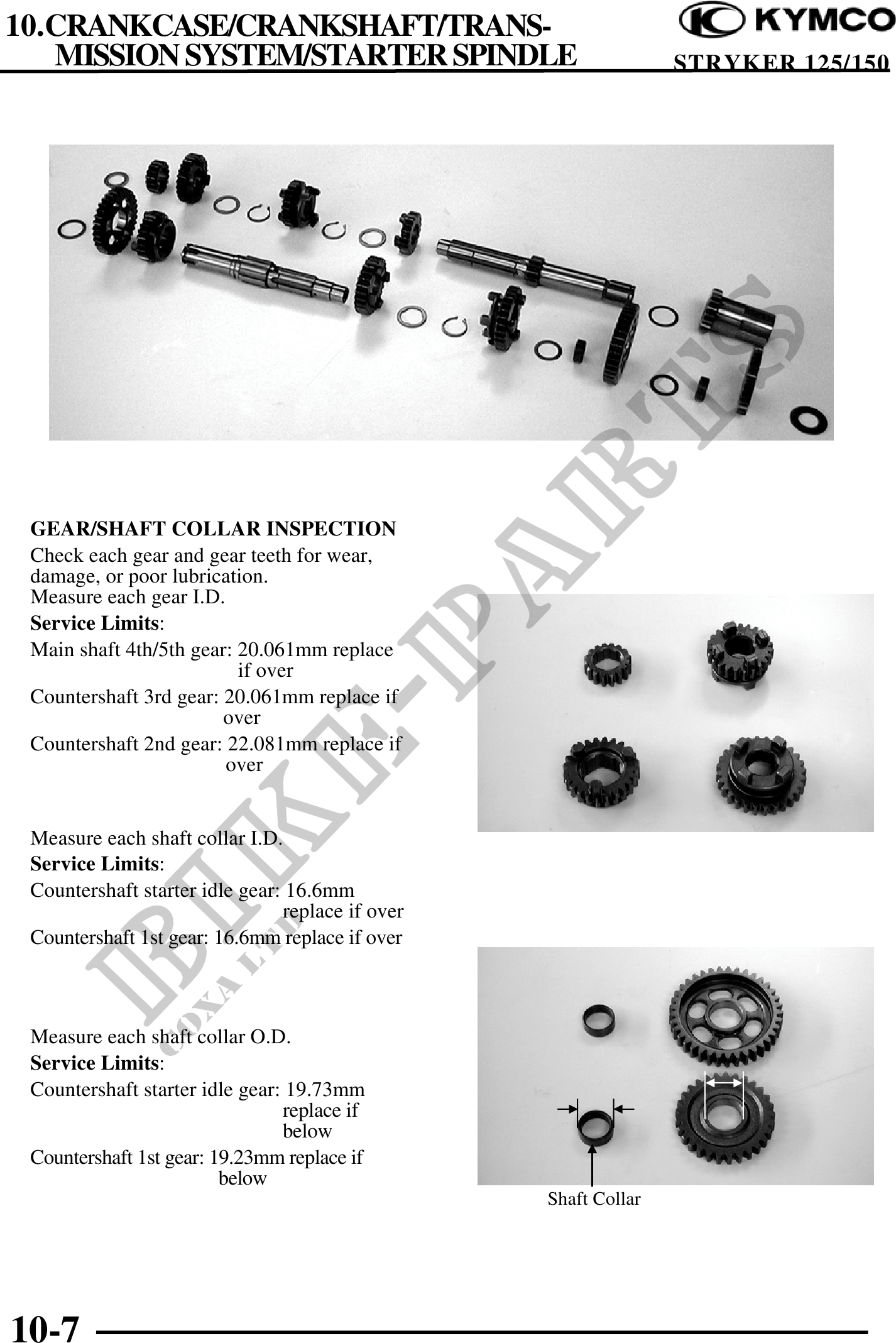

10.CRANKCASE/CRANKSHAFT/TRANS-
MISSION SYSTEM/STARTER SPINDLE STRYKER 125/150
GEAR/SHAFT COLLAR INSPECTION
Check each gear and gear teeth for wear,
damage, or poor lubrication.
Measure each gear I.D.
Service Limits:
Main shaft 4th/5th gear: 20.061mm replace
if over
Countershaft 3rd gear: 20.061mm replace if
over
Countershaft 2nd gear: 22.081mm replace if
over
Measure each shaft collar I.D.
Service Limits:
Countershaft starter idle gear: 16.6mm
replace if over
Countershaft 1st gear: 16.6mm replace if over
Measure each shaft collar O.D.
Service Limits:
Countershaft starter idle gear: 19.73mm
replace if
below
Countershaft 1st gear: 19.23mm replace if
below
Shaft Collar
10-7
