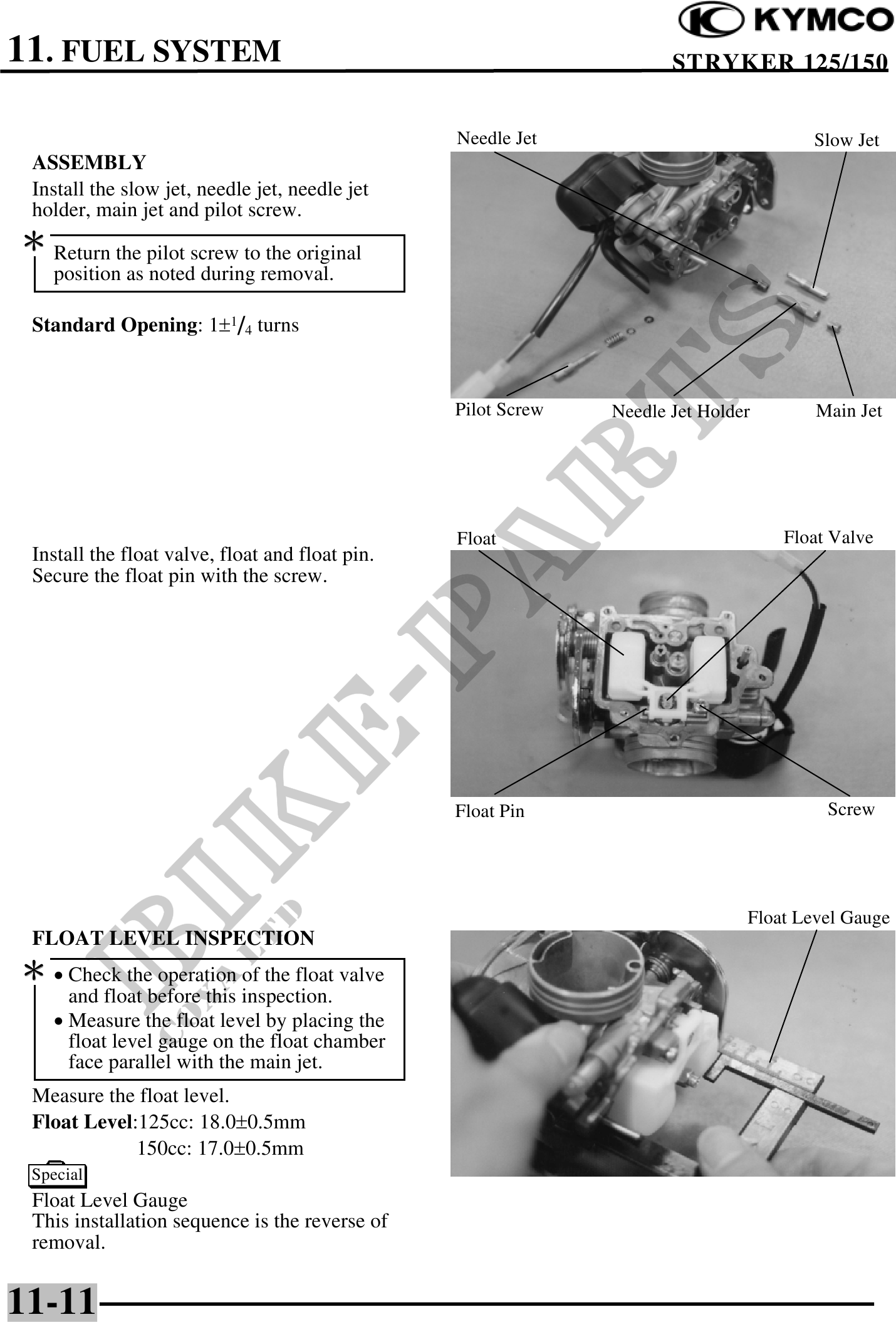

11. FUEL SYSTEM STRYKER 125/150
Needle Jet Slow Jet
ASSEMBLY
Install the slow jet, needle jet, needle jet
holder, main jet and pilot screw.
Return the pilot screw to the original
position as noted during removal.
Standard Opening: 11/4 turns
Pilot Screw Needle Jet Holder Main Jet
Float Float Valve
Install the float valve, float and float pin.
Secure the float pin with the screw.
Float Pin Screw
Float Level Gauge
FLOAT LEVEL INSPECTION
· Check the operation of the float valve
and float before this inspection.
· Measure the float level by placing the
float level gauge on the float chamber
face parallel with the main jet.
Measure the float level.
Float Level:125cc: 18.00.5mm
150cc: 17.00.5mm
Special
Float Level Gauge
This installation sequence is the reverse of
removal.
11-11
