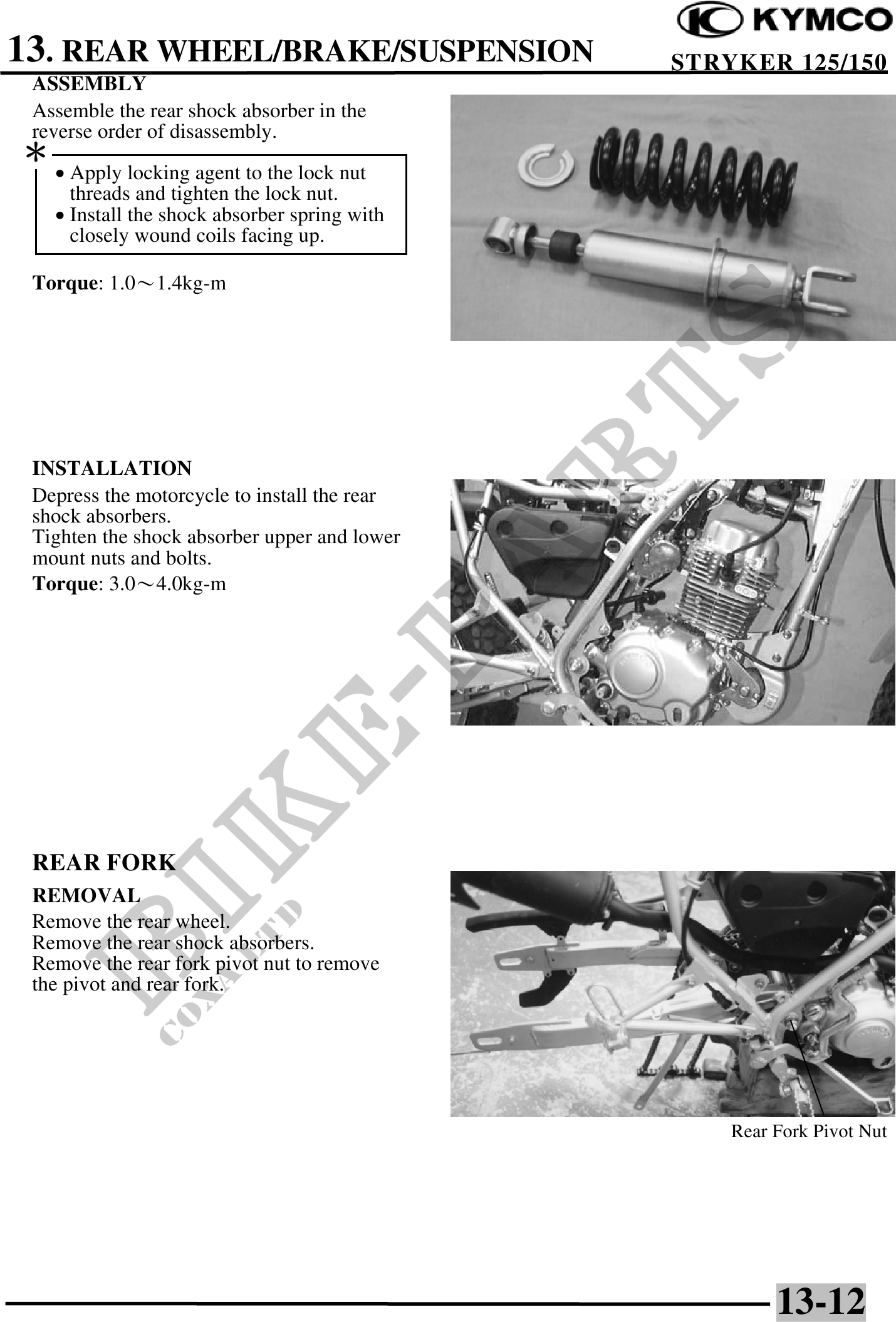

13. REAR WHEEL/BRAKE/SUSPENSION STRYKER 125/150
ASSEMBLY
Assemble the rear shock absorber in the
reverse order of disassembly.
· Apply locking agent to the lock nut
threads and tighten the lock nut.
· Install the shock absorber spring with
closely wound coils facing up.
Torque: 1.01.4kg-m
INSTALLATION
Depress the motorcycle to install the rear
shock absorbers.
Tighten the shock absorber upper and lower
mount nuts and bolts.
Torque: 3.04.0kg-m
REAR FORK
REMOVAL
Remove the rear wheel.
Remove the rear shock absorbers.
Remove the rear fork pivot nut to remove
the pivot and rear fork.
Rear Fork Pivot Nut
13-12
