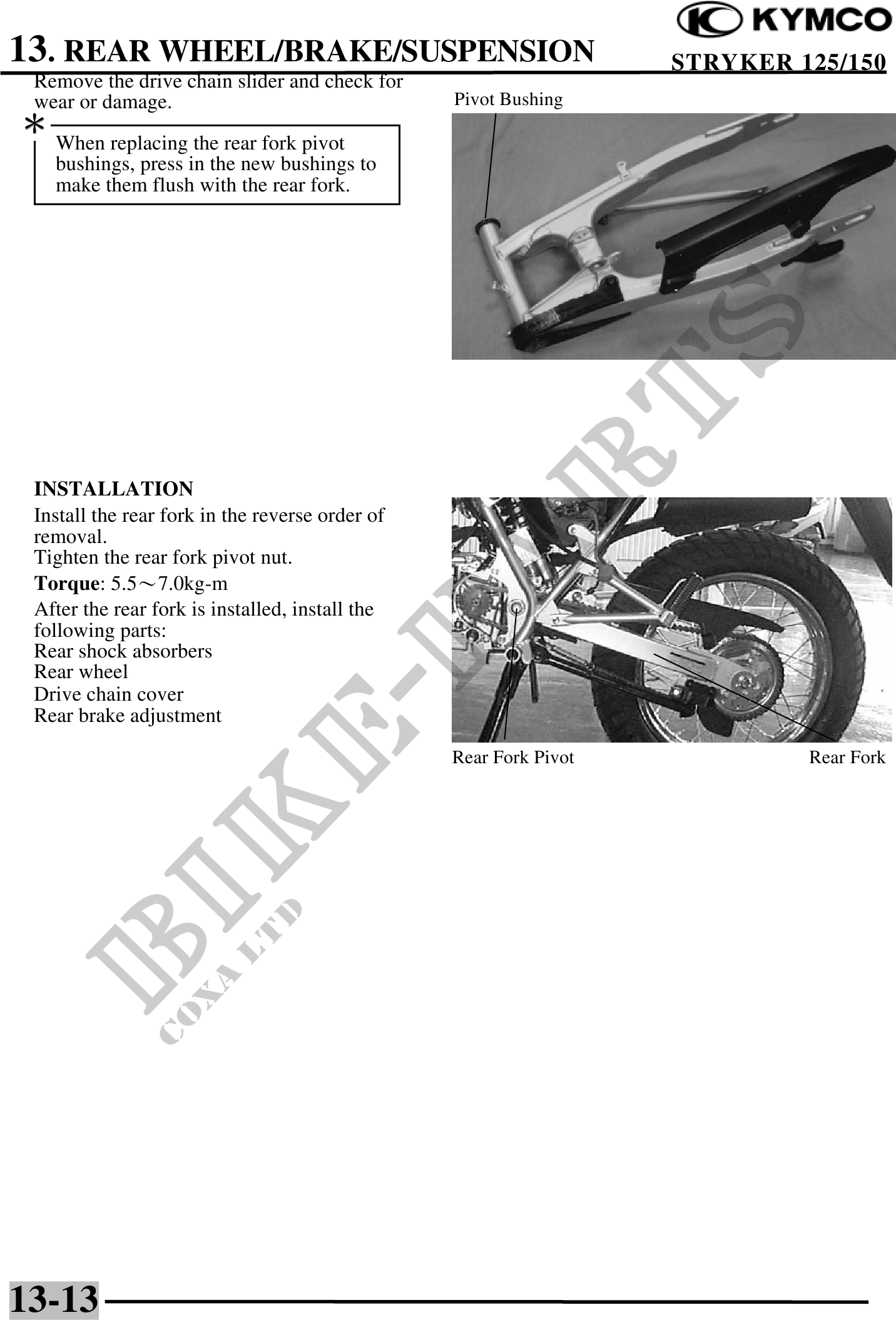

13. REAR WHEEL/BRAKE/SUSPENSION STRYKER 125/150
Remove the drive chain slider and check for
wear or damage. Pivot Bushing
When replacing the rear fork pivot
bushings, press in the new bushings to
make them flush with the rear fork.
INSTALLATION
Install the rear fork in the reverse order of
removal.
Tighten the rear fork pivot nut.
Torque: 5.57.0kg-m
After the rear fork is installed, install the
following parts:
Rear shock absorbers
Rear wheel
Drive chain cover
Rear brake adjustment
Rear Fork Pivot Rear Fork
13-13
