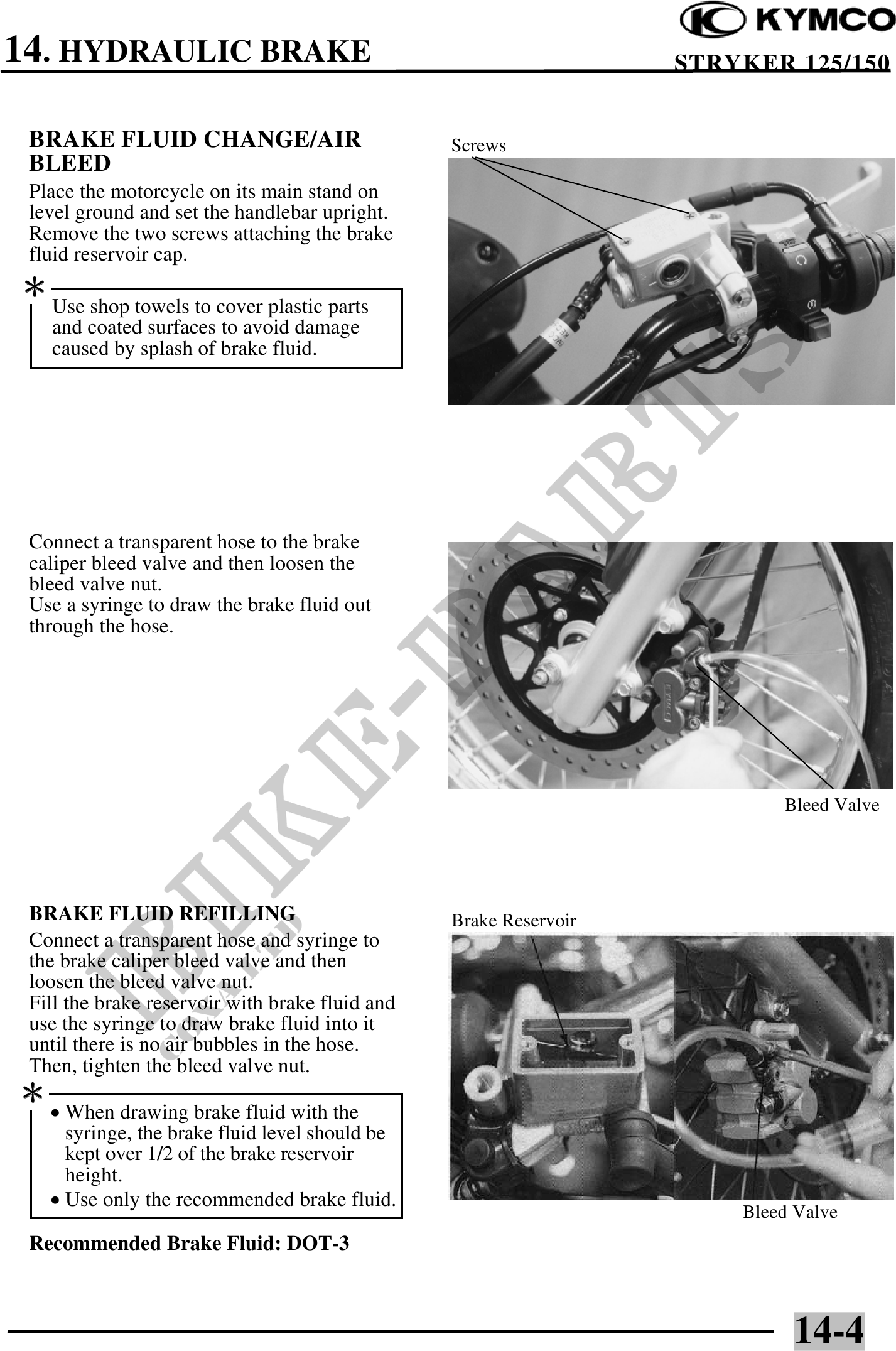

          14. HYDRAULIC BRAKE                                                STRYKER 125/150


 BRAKE FLUID CHANGE/AIR                          Screws
 BLEED
 Place the motorcycle on its main stand on
 level ground and set the handlebar upright.
 Remove the two screws attaching the brake
 fluid reservoir cap.

   Use shop towels to cover plastic parts
   and coated surfaces to avoid damage
   caused by splash of brake fluid.




 Connect a transparent hose to the brake
 caliper bleed valve and then loosen the
 bleed valve nut.
 Use a syringe to draw the brake fluid out
 through the hose.




                                                                           Bleed Valve




 BRAKE FLUID REFILLING                           Brake Reservoir
 Connect a transparent hose and syringe to
 the brake caliper bleed valve and then
 loosen the bleed valve nut.
 Fill the brake reservoir with brake fluid and
 use the syringe to draw brake fluid into it
 until there is no air bubbles in the hose.
 Then, tighten the bleed valve nut.

   · When drawing brake fluid with the
     syringe, the brake fluid level should be
     kept over 1/2 of the brake reservoir
     height.
   · Use only the recommended brake fluid.
                                                                       Bleed Valve
 Recommended Brake Fluid: DOT-3



                                                                            14-4
