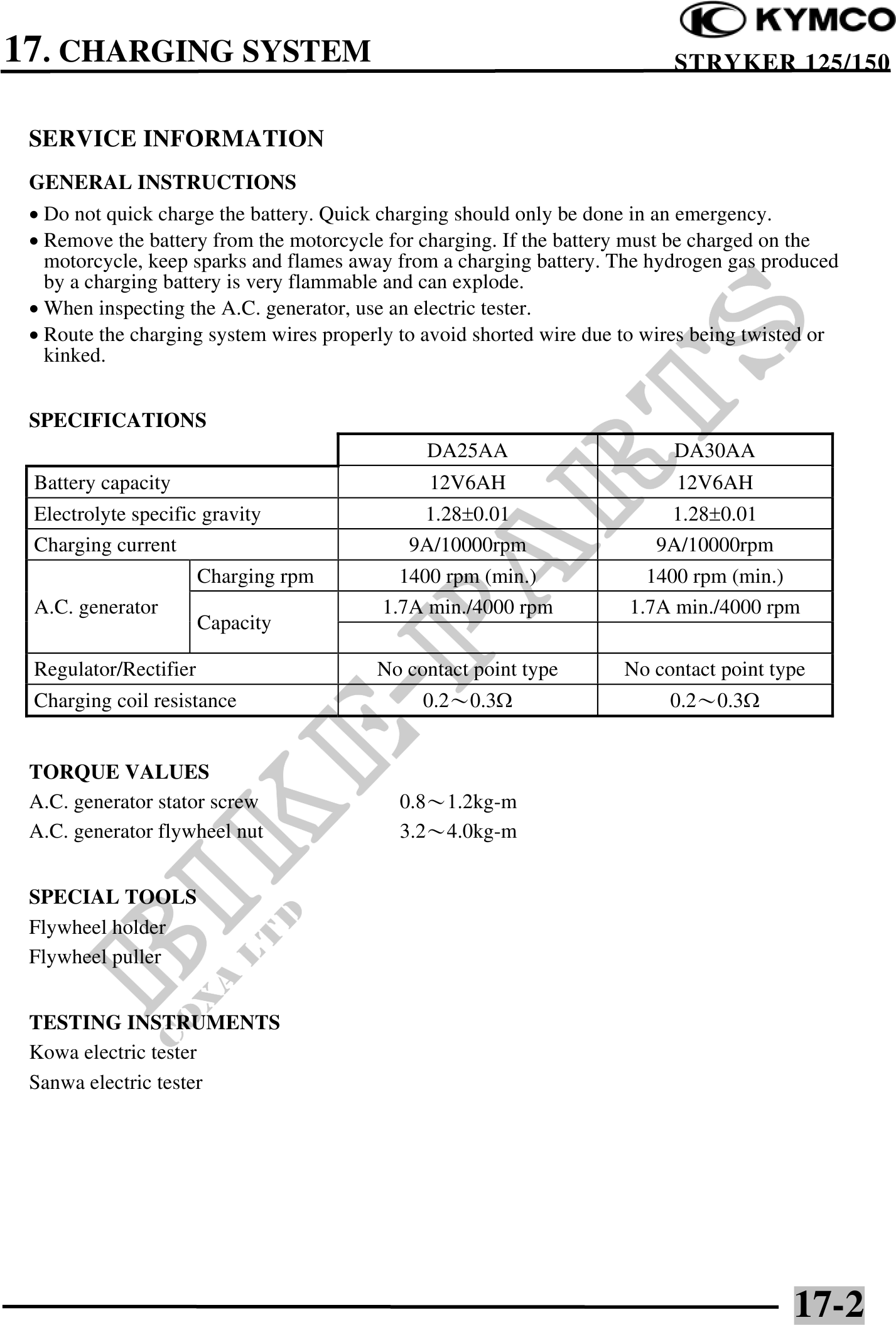

17. CHARGING SYSTEM STRYKER 125/150
SERVICE INFORMATION
GENERAL INSTRUCTIONS
· Do not quick charge the battery. Quick charging should only be done in an emergency.
· Remove the battery from the motorcycle for charging. If the battery must be charged on the
motorcycle, keep sparks and flames away from a charging battery. The hydrogen gas produced
by a charging battery is very flammable and can explode.
· When inspecting the A.C. generator, use an electric tester.
· Route the charging system wires properly to avoid shorted wire due to wires being twisted or
kinked.
SPECIFICATIONS
DA25AA DA30AA
Battery capacity 12V6AH 12V6AH
Electrolyte specific gravity 1.280.01 1.280.01
Charging current 9A/10000rpm 9A/10000rpm
Charging rpm 1400 rpm (min.) 1400 rpm (min.)
A.C. generator 1.7A min./4000 rpm 1.7A min./4000 rpm
Capacity
Regulator/Rectifier No contact point type No contact point type
Charging coil resistance 0.20.3 0.20.3
TORQUE VALUES
A.C. generator stator screw 0.81.2kg-m
A.C. generator flywheel nut 3.24.0kg-m
SPECIAL TOOLS
Flywheel holder
Flywheel puller
TESTING INSTRUMENTS
Kowa electric tester
Sanwa electric tester
17-2
